Product features

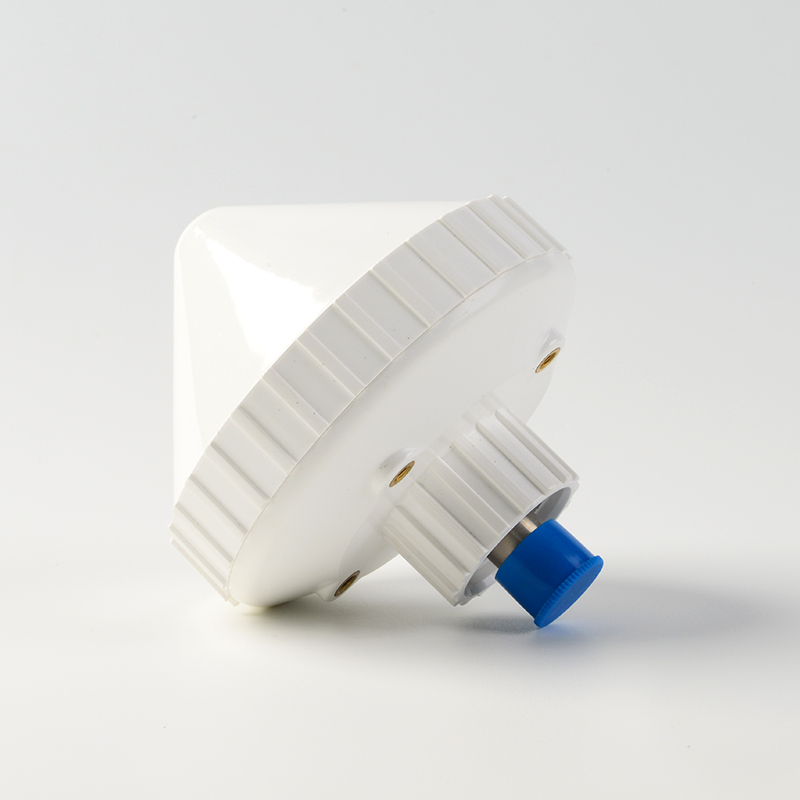

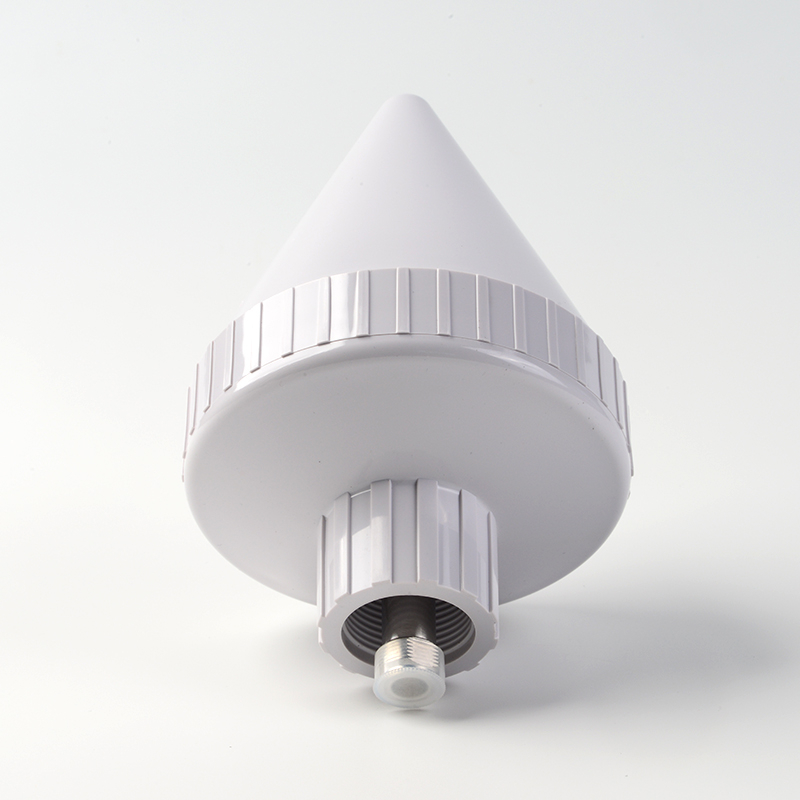

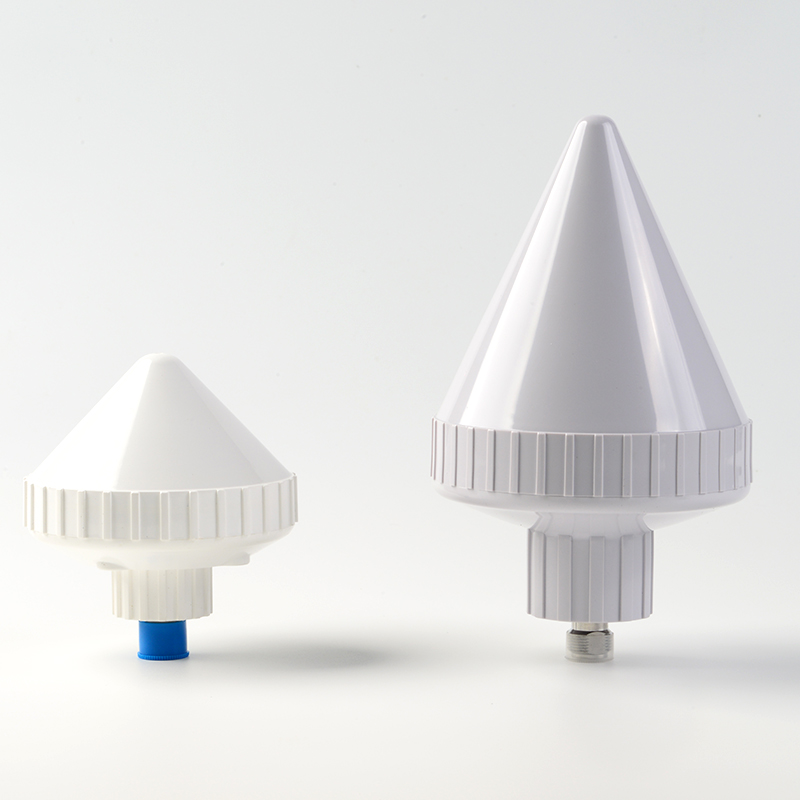

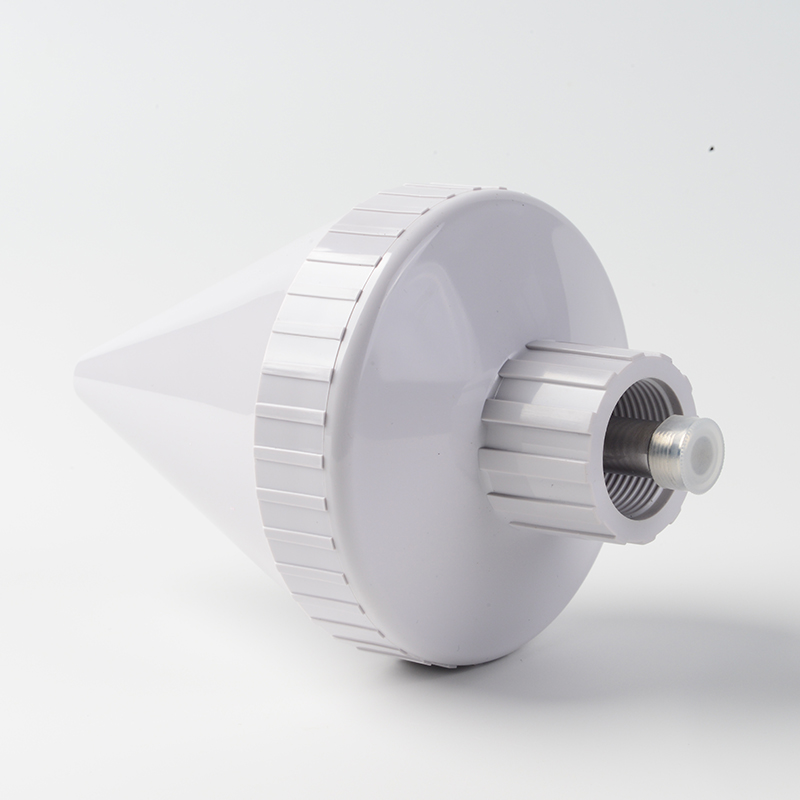

Satellite Time-Service antenna series designed for single frequency or multi-frequency sharing work.Application, for GPS,GLONASS,BDS single or multiple satellite navigation system,can match with worldwide time-service
module application,It can provide high-precision clock synchronization signal to the base station,power equip- ment navigation,etc.
Typical Index
Part No. | Frequency (MHz) | Gain (dBi) | Current (max) | Voltage (v) | Application |
TSA1568AT4 | 1575.42±5 | 39±2 | 45mA | 4V~6V | BD2B1+GPS |
1561±5 | |||||
TSA1561AT4 | 1561±3 | 38±2 | 45mA | 4V~6V | BD2 B1 |
TSA1575AT4 | 1575.42±5 | 38±2 | 45mA | 4V~6V | GPS L1 |
TSA3F19A | 1237.5&1584.5 | 37±2 | 100mA | 3V~6V | L1 L5 |
TSA3F43A | 1569.5 &1176.45±10 | 38±2 | 45mA | 5±0.5V | L1 B1 L5 |
