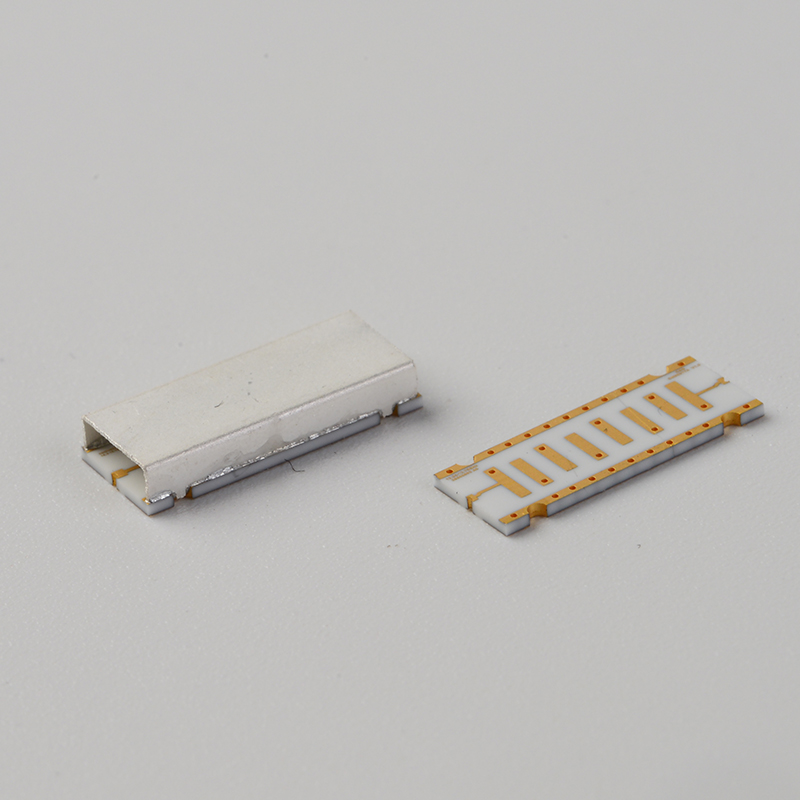

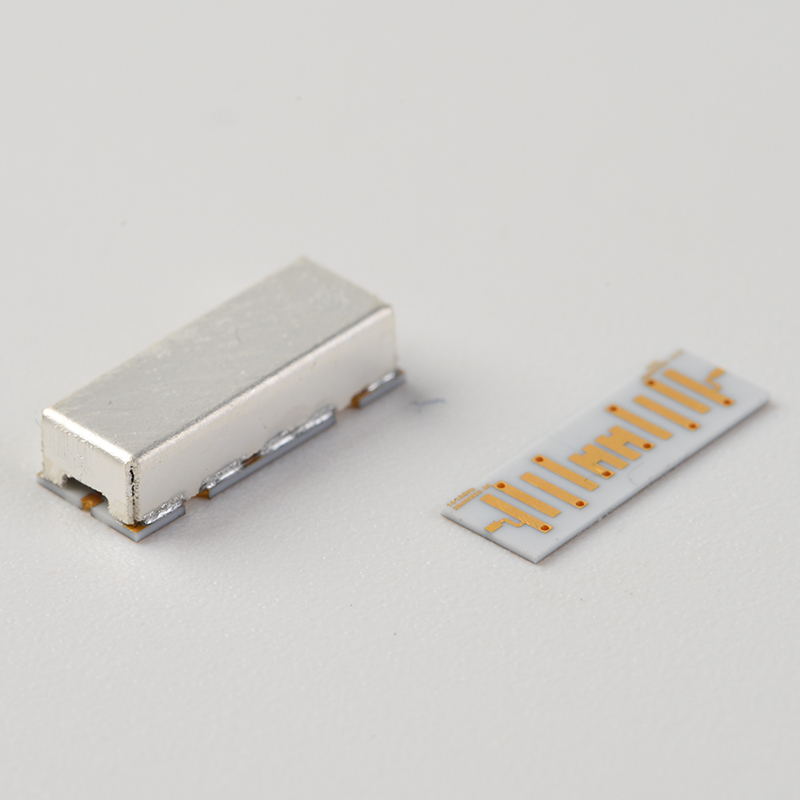

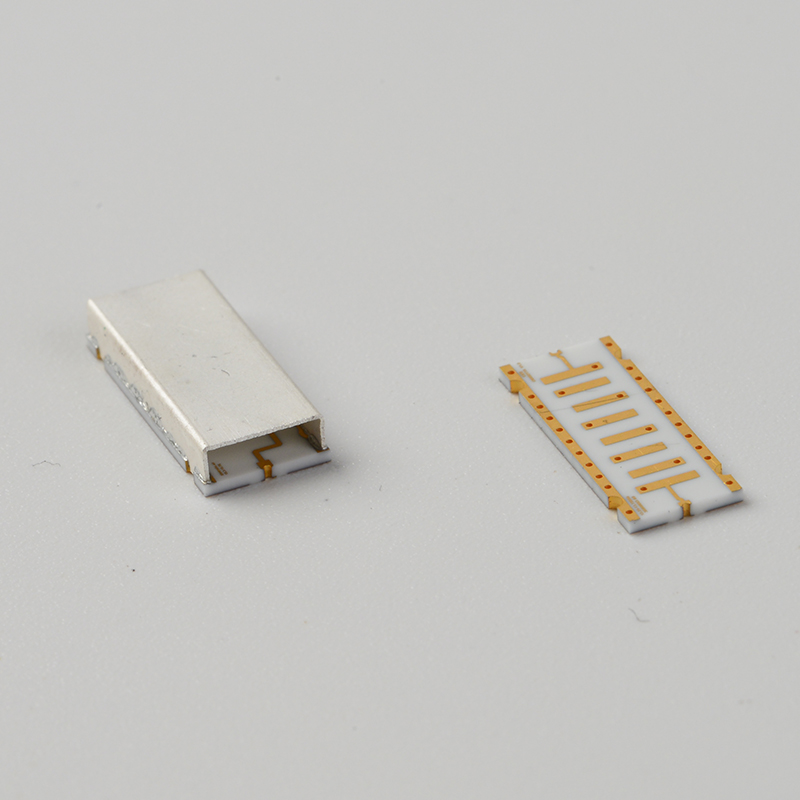

Product Features
High attenuation,low insertion loss,high power
Ceramic substrate, 50Ω coplanar waveguide output
Surface-mount, suitable for multi-chip integrated modules
Principal Parameters
Specification | Technical Parameter | Package Type | ||||
Passband Frequency(GHz) | In-band Insertion Loss(dB) | In-band Ripple(dB) | Out-of-band Rejection(dB/dBc) | In-band VSWR | ||
CMX041A | 14-14.5 | ≤1.0 | / | 15.5dBc@11GHz | ≤1.5 | Surface Mount |
CMX042A | 15.3-15.7 | ≤1.0 | / | 14.3dBc@11GHz | ≤1.5 | Surface Mount |
CM×0116A | 34-36 | fo≤2.0 | ≤1.0 | 40dB@32GHz 40dB@39GHz | ≤1.57 | Gold Wire Bonding |
CMX0134A | 8.8325-10.1675 | ≤3.5 | / | 70dB@7.3GHz 40dB@18GHz | ≤1.5 | Surface Mount |
CMX0143A | 2.75-4.25 | ≤2.0 | / | 20dB@2.3GHz&4.6GHz 40dB@1.86GHz | ≤15 | Surface Mount |
CM×0152A | 0.3-4.6 | ≤0.4 | / | 60dB@8.2-8.8GHz | ≤143 | Surface Mount |
CMX0175A | 12.5-13.5 | ≤3.5 | ≤1.0 | 60dB@DC-9GHz 60dB@15.5-21GHz | ≤1.57 | Gold Wire Bonding |
CMX0185A | 6-8 | ≤3.5 | ≤15 | 40dB@9GHz | ≤2.0 | Gold Wire Bonding |
CMX0188A | 34.7-35.3 | ≤2.0 | ≤1.0 | 50dB@DC-29.4GHz 40dB@40GHz | ≤1.43 | Gold Wire Bonding |
CMX0193A | 24.5-28 | ≤3.5 | ≤1.0 | 55dBc@20.7GHz 40dBc@30.5GHz | ≤1.6 | Gold Wire Bonding |
CMX0194A | 24.5-26 | ≤3.5 | ≤1.0 | 55dBc@20.5GHz 40dBc@22.5&28GHz | ≤1.6 | Gold Wire Bonding |
CM×0195A | 26-28 | ≤3.5 | ≤1.0 | 55dBc@22.5GHz 40dBc@24&29.5GHz | ≤16 | Gold Wire Bonding |
CMX0196A | 19-24.5 | ≤2.5 | ≤1.0 | 45dBc@8.5GHz&36.6GHz 35dBc@12.2GHz | ≤1.6 | Gold Wire Bonding |
CM×0212A | 2.595-3.405 | ≤3.5 | / | 40dBc@2.4GHz 40dBc@3.7GHz 55dBc@DC-2.1GHz | ≤1.57 | Surface Mount |
CMX0213A | DC-3.6 | ≤2.0 | / | 10dB@4.4GHz 35dB@7.8GHz | ≤1.5 | Surface Mount |
CMX0214A | DC-4.4 | ≤2.0 | / | 20dB@6.1GHz 45dB@8.0GHz | ≤1.5 | Surface Mount |
CM×0217A | 12.25-13.75 | ≤3.0 | 50dB@8.9GHz 55dB@10.55GHz 30dB@14.7GHz 45dB@21.1-24.3GHz | ≤1.7 | Surface Mount | |
CMX0218A | 2.1-2.8 | ≤4.0 | / | 10dB@2.0&2.9GHz 40dB@1.4&4.3GHz | ≤1.7 | Surface Mount |
CMX0233A | 7.45-9.05 | ≤2.5 | ≤1.0 | 40dB@6.5GHz 40dB@9.8GHz | ≤1.5 | Gold Wire Bonding |
CMX0238A | 24-27 | ≤3.0 | ≤1.0 | 60dB@DC-13.5GHz&36-40GHz 30dB@13.5-20GHz&30-36GHz | ≤2.0 | Gold Wire Bonding |
CMX0239 | 27-30 | ≤3.0 | ≤1.0 | 60dB@DC-15GHz&41-45GHz 30dB@15-23GHz&34-41GHz | ≤2.0 | Gold Wire Bonding |
CMX0240A | 27.5-29.5 | ≤3.0 | ≤1.0 | 45dBc@DC-23.3GHz 40dB@35-40GHz | ≤2.0 | Gold Wire Bonding |
CMX0243A | 31.65-35.35 | fO≤2.8 | ≤1.0 | 40dBc@DC-29.85GHz 40dB@37.7-44GHz&40-46GHz | ≤1.8 | Gold Wire Bonding |
CMX0244A | 36.35-40.05 | f0≤1.8 | ≤1.2 | 40dB@DC-30GHz 40dB@45-50GHz | ≤1.8 | Gold Wire Bonding |
CMX0247A | 27.5-29.5 | ≤3.3 | / | 45dB@25-25.75GHz 10dB@26-26.7GHz&30.3-31GHz 40dB@31-32GHz | ≤1.67 | Surface Mount |
CMX0248A | 12.2-13.3 | f0≤3.3 | ≤1.0 | 45dBc@DC-10.6GHz 45dBc@14.3-25GHz | ≤1.67 | Gold Wire Bonding |
CMX0249A | 14-16 | fO≤2.7 | ≤1.1 | 45dBc@DC-13.1GHz 45dBc@17-30GHz | ≤1.67 | Gold Wire Bonding |
CMX0250A | 14.5-15.5 | ≤2.5 | ≤0.5 | 45dBc@11.1-12.1GHz | ≤1.92 | Gold Wire Bonding |
CMX0251A | 8-9.1 | ≤2.5 | / | 40dB@1-6.8GHz 30dB@10.3-18GHz | ≤1.5 | Gold Wire Bonding |
CMX0252A | 9-10.1 | ≤2.5 | / | 35dB@1-7.8GHz 30dB@11.3-18GHz | ≤1.5 | Gold Wire Bonding |
CMX0253A | 10-11.1 | ≤3.0 | / | 40dB@1-8.8GHz 30dB@12.3-18GHz | ≤1.5 | Gold Wire Bonding |
CMX0254A | 11-12 | ≤2.5 | / | 35dB@1-9.8GHz 40dB@13.3-18GHz | ≤1.5 | Gold Wire Bonding |
CMX0255A | 12-13.6 | ≤3.5 | / | 35dB@8-11.2GHz 20dB@14.4-20GHz | ≤1.5 | Gold Wire Bonding |
CMX0256A | 13-14.6 | ≤3.5 | / | 35dB@8-12.2GHz 20dB@15.4-20GHz | ≤1.5 | Gold Wire Bonding |
CMX0257A | 14-15.6 | ≤3.5 | / | 35dB@8-13.2GHz 20dB@16.4-20GHz | ≤1.5 | Gold Wire Bonding |
CMX0258A | 15-16.6 | ≤3.5 | / | 35dB@8-14.2GHz 20dB@17.4-20GHz | ≤1.5 | Gold Wire Bonding |
CMX0259A | 16-17.6 | ≤3.5 | / | 35dB@8-15.2GHz 20dB@18.4-20GHz | ≤1.5 | Gold Wire Bonding |
CMX0260A | 16-18 | ≤3.5 | / | 45dB@8-15.2GHz 20dB@18.8-20GHz | ≤1.5 | Gold Wire Bonding |
CMX0262A | 21-23 | ≤3.0 | / | 20dB@20GHz 40dB@25GHz | ≤1.5 | Gold Wire Bonding |
CMX0263A | 29.1-31 | ≤3.5 | / | 50dB@17.7-27GHz 15dB@31.8-32GHz 55dB@34-42.4GHz | ≤1.92 | Surface Mount |
CMX0265A | 5.34-5.94 | ≤3.5 | ≤1.5 | 35dB@DC-4.96GHz&6.3-6.9GHz 38dB@6.9 -8GHz 30dB@8-9GHz | ≤1.8 | Gold Wire Bonding |
CMX0269A | 13.75-14.5 | ≤3.5 | ≤0.6 | 10dB@13.1-13.3GHz&15.2-15.5GHz 35dB@10-13.1GHZ 40dB@15.5-22GHz | ≤1.5 | Gold Wire Bonding |
CMX0270A | 3.4-4.2 | ≤3.0 | ≤1.0 | 25dBc@3GHz 25dBc@4.6GHz | ≤2.0 | Surface Mount |
CMX0271A | 4.8-5.6 | ≤3.0 | ≤1.0 | 25dBc@4.4GHz 25dBc@6GHz | ≤2.0 | Surface Mount |
CMX0290A | 27-31.4 | fO≤1.5 | ≤1.5 | 40dB@23.6GHz 40dB@34.5GHz | ≤1.67 | Gold Wire Bonding |
CMX0291A | 29-30 | ≤4.5 | ≤1.0 | 35dB@28.05GHz | ≤1.92 | Gold Wire Bonding |
CMX0293A | 4.0-5.0 | fO≤2.8 | ≤1.2 | 40dBc@DC-3.3GHz 40dBc@5.8-10.2GHz | ≤1.67 | Gold Wire Bonding |
CMX0294A | 19-24.5 | ≤3.5 | ≤1.0 | 45dBc@8.5GHz 35dBc@12.2GHz | ≤1.92 | Gold Wire Bonding |
CMX0296A | 18.985-19.015 | ≤2.0 | / | 60dBc@25-26GHz 40dBc@3-15GHz&22-23GHz | ≤1.5 | Gold Wire Bonding |
CMX0297A | 10.7-12.75 | ≤3.0 | ≤1.0 | 40dB@13.75-14.5GHz | ≤1.8 | Gold Wire Bonding |
CMX0299A | 8-12 | fO≤2.0 | ≤1.5 | 15dBc@7GHz&13GHz 40dBc@6.45GHz&13.2GHz | ≤2.0 | Gold Wire Bonding |
CMX0300A | 2.8-3.5 | fO≤2.0 | ≤1.0 | 40dB@2.2GHz 40dB@4.2GHz | ≤1.57 | Gold Wire Bonding |
CMX0301A | 3.5-4.5 | fo≤2.0 | ≤1.0 | 40dB@2.7GHz 40dB@5.5GHz | ≤1.57 | Gold Wire Bonding |
CMX0305A | 22.335-22.365 | ≤3.0 | ≤1.0 | 60dBc@10-12GHz&33-34GHz 40dBc@19.6GHz&25.1GHz | ≤1.5 | Gold Wire Bonding |
CMX0327A | 8.9-10.1 | ≤2.0 | / | 55dBc@8GHz | ≤2.0 | Gold Wire Bonding |
CMX0328A | 6.4-7.6 | ≤4.0 | / | 40dB@5.6GHz 40dB@8.6GHz | ≤2.0 | Gold Wire Bonding |
CMX0329A | 8.7-10.5 | ≤4.0 | / | 55dBc@6GHz | ≤2.0 | Gold Wire Bonding |
CMX0330A | 13.75-14.5 | ≤3.5 | ≤1.0 | 30dB@DC-10.7GHz 30dB@10.7-12.75GHz&12.8-13.05GHz | ≤1.67 | Surface Mount |
CMX0344A | 7.85-8.2 | ≤3.0 | ≤1.0 | 30dB@8.75GHz 40dB@7.25GHz&8.9GHz 60dB@DC-5GHz | ≤1.67 | Gold Wire Bonding |
CMX0345A | 10.9-13.1 | ≤2.5 | ≤1.0 | 40dB@DC-9.4GHz 40dB@14.72-20GHz | ≤1.67 | Gold Wire Bonding |
CMX0388A | 21.5-22.5 | ≤4.0 | / | 60dBc@1.3-2.3GHz 55dBc@14.4-20GHz 50dBc@28.8-40GHz | ≤2.0 | Gold Wire Bonding |
CMX0389A | 27-28 | ≤4.5 | / | 60dBc@1.3-2.3GHz&14.4-20GHz 50dBc@28.8-40GHz | ≤2.0 | Gold Wire Bonding |
CMX0390A | 20.2-29.3 | ≤3.5 | / | 55dBc@10-15GHz | ≤2.0 | Gold Wire Bonding |
CMX0391A | 25-27 | ≤1.5 | / | 65dBc@21GHz | ≤1.8 | Gold Wire Bonding |
CMX0392A | 15-16 | ≤3.5 | / | 40dB@12-14GHz | ≤1.8 | Gold Wire Bonding |
CMX0393A | 12-13 | ≤3.0 | / | 40dB@DC-10GHz 40dB@15-25GHz | ≤1.8 | Gold Wire Bonding |
CMX0406A | DC-11.2 | ≤2.0 | / | 50dBc@13-23GHz | ≤1.5 | Surface Mount |
CMX0407A | DC-13 | ≤2.0 | / | 50dBc@16GHz | ≤1.5 | Gold Wire Bonding |
CMX0408A | DC-8 | ≤2.0 | / | 50dBc@10GHz | ≤1.5 | Gold Wire Bonding |
CMX0451A | 14.5-16.5 | ≤3.0 | ≤1.0 | 50dBc@DC-13GHz 50dBc@17.9-24GHz | ≤1.8 | Gold Wire Bonding |
CMX0452A | 12.75-13.25 | ≤1.0 | / | / | ≤1.57 | Surface Mount |
CMX0454A | 7.8-10.3 | ≤3.0 | ≤1.0 | 45dBc@DC-6GHz&6.4GHz 20dBc@6-7.2GHz&11-12GHz 45dBc@12-18GHz | ≤2.0 | Gold Wire Bonding |
CMX0455A | 14.3-16.7 | ≤2.5 | ≤1.0 | 40dBc@DC-12.8GHz 40dBc@18.2-26GHz | ≤2.0 | Gold Wire Bonding |
CMX0456A | 32-38 | ≤3.0 | ≤1.2 | 35dBc@DC-30.2GHz | ≤2.0 | Gold Wire Bonding |
CMX0462A | 13.75-14.5 | f0≤4.0 | I | 30dB@12.8GHz 40dB@9.95GHz&10.9GHz&11.85GHz 10dB@14.7GHz 50dB@20-26GHz | ≤2.0 | Surface Mount |
CMX0464A | 24-40 | 24GHz≤2.0 | ≤1.0 | 40dBc@DC-20GHz 15dBc@22GHz | ≤1.8 | Gold Wire Bonding |
CMX0471A | 24.8-27.8 | 25GHz±50MHz ≤3.0 | 25GHz±50MHz ≤0.2 | 50dB@DC-23GHz 50dB@30-45GHz | ≤1.8 | Gold Wire Bonding |
CMX0473A | 17.9-19.9 | ≤4.0 | ≤2.0 | 65dBc@DC-10GHz 40dBc@10-16.8GHz&21-30GHz 20dBc@30-40GHz | ≤1.8 | Gold Wire Bonding |
CMX0474A | 22.5-23.5 | 23GHz±50MHz ≤3.0 | 23GHz±50MHz ≤0.2 | 20dB@DC-20.7GHz 20dB@25-42GHz | ≤1.5 | Gold Wire Bonding |
CMX0479A | 20-22 | ≤2.5 | I | 50dB@DC-11Hz&30-40GHz 30dB@23-30GHz | ≤1.5 | Gold Wire Bonding |
CMX0480A | 22-24 | ≤4.0 | / | 50dB@10-12Hz&33-36GHz 20dB@21GHz&24.75GHz | ≤1.8 | Surface Mount |
CMX0497A | 4.45-4.75 | ≤2.5 | ≤0.5 | 45dBc@3.3-3.5GHz TBD@9-14.5GHz | ≤1.5 | Gold Wire Bonding |
CMX0500A | 12.65-13.95 | ≤3.0 | ≤0.5 | 40dBc@DC-11.4GHz 60dBc@15.3-25GHz | ≤1.8 | Gold Wire Bonding |
CMX0508A | 31-35 | ≤3.5 | / |
15dBc@29.5GHz&36GHz 45dBc@37GHz | ≤2.0 | Gold Wire Bonding |
CMX0509A | 33-37.5 | ≤3.5 | / | 50dBc@30GHz 35dBc@39.5-45GHz | ≤2.0 | Gold Wire Bonding |
CMX0510A | 35.5-40 | ≤3.5 | / | 50dBc@32GHz 35dBc@42GHz | ≤2.0 | Gold Wire Bonding |
*For reference only,can be customized
